Model 446

5kV @ 20mA AC Hipot, 6kV @ 5mA DC Hipot, Insulation Resistance, 40A AC Ground Bond Tester, CE Listed

Our 446 model is a 4-in-1 tester with AC Hipot, DC Hipot, Insulation Resistance, and Ground Bond capabilities. This tester features a simple design and easy-to-use interface, reducing setup time and increasing production-line throughput for your application. The 446 is equipped with multiple memories and an optional USB port for remote BUS communication so you can quickly perform tests on a variety of DUTs from the front panel or with a PC. Add to user safety by equipping your tester with Personal Protective Equipment (PPE) via the built-in safety interlock.
Learn about our 5 Year Warranty.

$3,999.00

Options

Rear Outputs + $200.00

USB Port + $200.00

Input Power Cable

Calibration Type

SKU

00446

Skip to the end of the images gallery

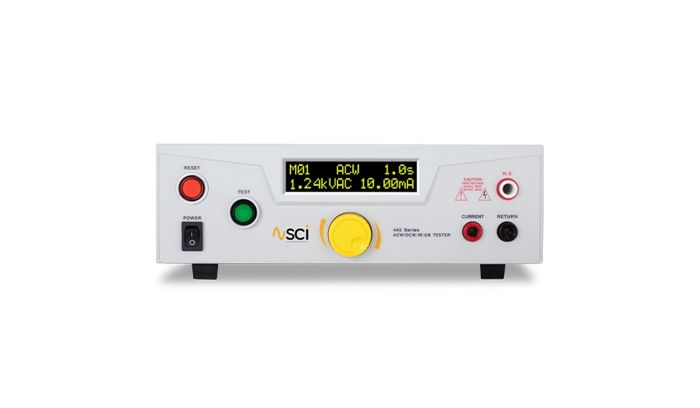

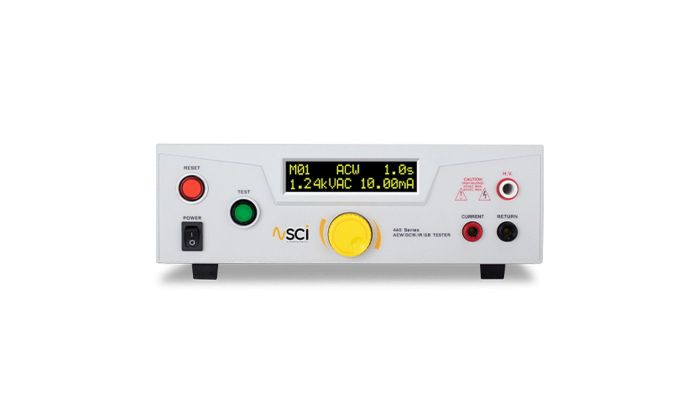

main product photo

Skip to the beginning of the images gallery

Model Features

The Hipot test is used to stress a product's insulation with high voltage in order to ensure it will limit the flow of electric current should a fault occur.

Max Trip Current = 12 mAAC
Max Voltage = 5.0 kVAC
The Hipot test is used to stress a product's insulation with high voltage in order to ensure it will limit the flow of electric current should a fault occur.

Max Trip Current = 5 mADC
Max Voltage = 6.0 kVDC
The Insulation Resistance test is used to determine the total resistance of a DUT's insulation.

Voltage Range = 100-1000 VDC
Resistance Range = 1-1000 MΩ
The Ground Bond test is used to verify the integrity of a DUT's earth ground conductor.

Output Current = 3.0-40.0 AAC

Compare Models

	AC Hipot	DC Hipot	Insulation Resistance	40 Amp Ground Bond
Model 446
Model 448	500VA				View Details

Resources

In The Box

SUPPLIED ACCESSORIES

Hipot / Ground Bond Testers come with all of the accessories you need to run a test right out of the box.

33189 Power Cord (10A)
99-10783-01 Fuse
38075 Interlock Connector
99-10866-01 Ground Bond Test Lead
99-10865-01 Ground Bond Return Lead
04040A-08 High Voltage Lead
99-10797-01 USB Cable

Find more compatible accessories >
