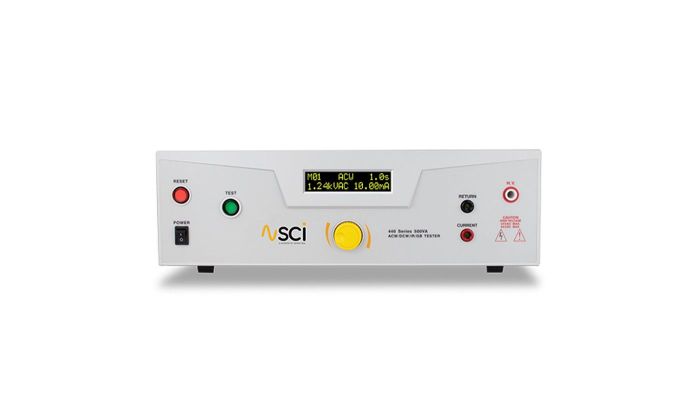

Model 448
500VA, 5kV @ 100mA AC Hipot, 6kV @ 10mA DC Hipot, Insulation Resistance, 40A AC Ground Bond, CE Listed
Our 448 model is a 4-in-1 tester with 500VA AC Hipot, DC Hipot, Insulation Resistance and Ground Bond testing capabilities. The 448 is capable of a 500VA AC Hipot output to comply with 100mA leakage current test compliance requirements. This tester features a simple design and easy-to-use interface, reducing setup time and increasing production-line throughput for your application. The 448 is equipped with multiple memories and an optional USB port for remote BUS communication so you can quickly perform tests on a variety of DUTs from the front panel or with a PC. Add to user safety by equipping your tester with Personal Protective Equipment (PPE) via the built-in safety interlock.
Learn about our 5 Year Warranty.
Model Features
-
The Hipot test is used to stress a product's insulation with high voltage in order to ensure it will limit the flow of electric current should a fault occur.
Max Trip Current = 12 mAAC
Max Voltage = 5.0 kVAC -
The Hipot test is used to stress a product's insulation with high voltage in order to ensure it will limit the flow of electric current should a fault occur.
Max Trip Current = 5 mADC
Max Voltage = 6.0 kVDC -
The Insulation Resistance test is used to determine the total resistance of a DUT's insulation.
Voltage Range = 100-1000 VDC
Resistance Range = 1-1000 MΩ -
The Ground Bond test is used to verify the integrity of a DUT's earth ground conductor.
Output Current = 3.0-40.0 AAC
 AC Hipot |
 DC Hipot |
 Insulation Resistance |
 40 Amp Ground Bond |
||
|---|---|---|---|---|---|
| Model 446 |  |
|
|
|
View Details |
| Model 448 | 500VA | |
|
|
SUPPLIED ACCESSORIES
Hipot / Ground Bond Testers come with all of the accessories you need to run a test right out of the box.
- 38071 Power Cord (15A)
- 99-10168-01 Fuse
- 38075 Interlock Connector
- 40428 Ground Bond Test Lead
- 40429 Ground Bond Return Lead
- 04040A-08 High Voltage Lead
- 99-10797-01 USB Cable
