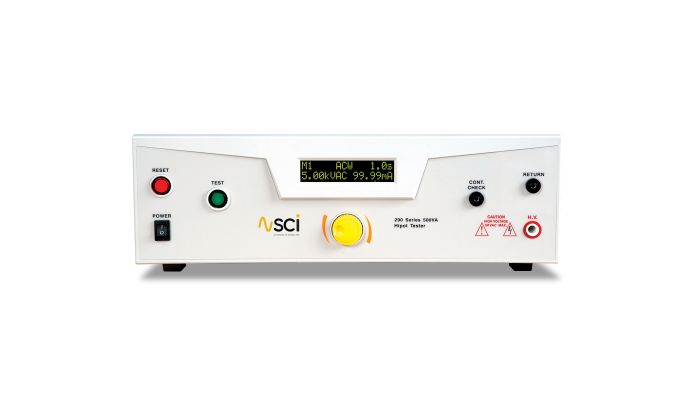

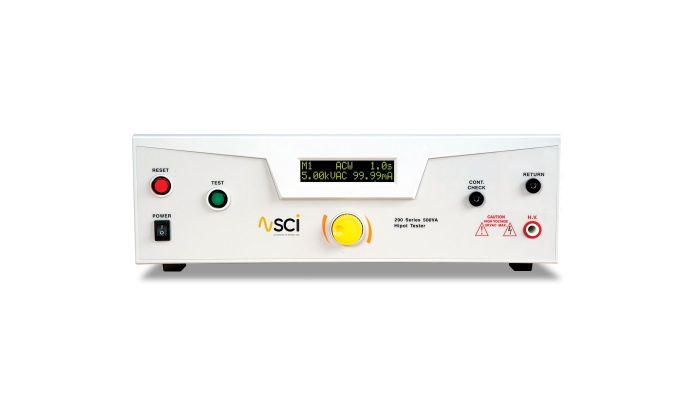

Model 298

500 VA, 5 kV @ 100 mA AC Hipot, Ground Continuity, CE Listed.

Our Model 298 is a simple-to-use 500VA AC Hipot Tester with the built-in ability to test Ground Continuity (Low Current Continuity). The 298 500VA AC Hipot Tester includes all the features you need to get the job done and move on. Make testing simple with common sense security settings. PLC Remote allows you to make 500VA AC Hipot Testing safer with Personal Protective Equipment (PPE).
Learn about our 5 Year Warranty.
Learn more about the 290 Series Hipot Tester.

With the SCI 290 Series we set out to make Hipot testing simpler than ever before. Our 290 Series of Hipot testers includes the most intuitive user interface in the industry. They're light weight and compact, so these Hipot Testers won’t take up too much space on your production line. Testing a variety of DUT's is a breeze with the 290's 5 programmable memories. Upgrade to 10 optional memories to cover a variety of electrical safety testing routines. Quickly perform tests from the front panel, or upgrade to a USB port to increase throughput via PC control. All 290 Models allow you to easily test for Ground Continuity (a.k.a. Low Current Continuity) with one tester. Choose from 5 different models to satisfy your testing requirements.

$3,999.00
SKU
00298
  AC Hipot AC Hipot DC Hipot DC Hipot Insulation Resistance Insulation Resistance Ground Continuity Check Ground Continuity Check
Model 294   Check Mark   Check Mark View Details
Model 295 Check Mark     Check Mark View Details
Model 296 Check Mark Check Mark   Check Mark View Details
Model 297 Check Mark Check Mark Check Mark Check Mark View Details
Model 298 500VA     Check Mark





Specs      Manual      Quick Start Guide     Quick Start Video

SUPPLIED ACCESSORIES

SCI Hipot Testers come with all of the accessories you need to run a test right out of the box.

  • 02100A-13 - Return Lead 6 ft. (1.8m)
  • 04040A-08 - High Voltage Lead 6 ft. (1.8m)
  • 33189 - Input Power Cable USA
  • 38075 - Interlock Connector

Find more compatible accessories >

USB Driver

Stop hand writing test results. Our SCI 290 Series has an optional USB communication interface, which allows for easy automation and data collection. For those who have this feature, please download our free USB driver.



Download USB Driver >>
